Programmable beam technology to maximize Additive Manufacturing productivity. The nLIGHT® Corona™ AFX fiber laser family provides the ability to switch between a single-mode beam for highspatial-resolution printing and larger ring beams for greatly accelerated build rates delivering revolutionary productivity with generous process windows and improved material quality.

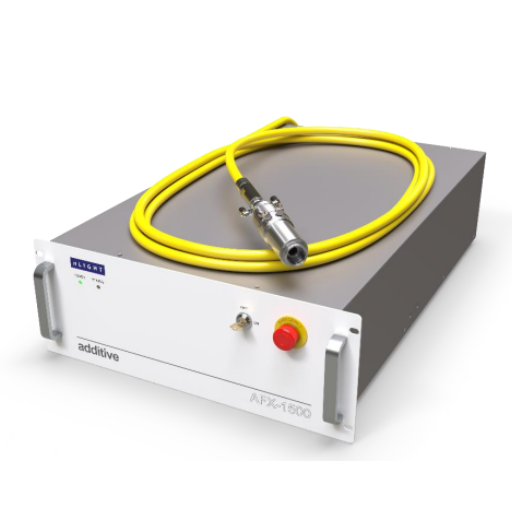

AFX – Programmable fiber laser
True single mode to ring-mode beam shapes for additive
Built for Productivity
AFX lasers deliver precision where it’s needed and accelerated throughput
where it’s not. Metal additive manufacturing just entered a new era of
quality, profitability and productivity.
| Model | AFX-1000 | AFX-1500 |
|---|---|---|
| Optical | ||
| Mode of Operation | CW/Modulated | |
| Maximum Power, SM Setting | 1200 W | 1200 W |
| Maximum Power, MM Settings | 1200 W | 1500 W |
| 0.10 NA Power Enclosure | > 90% | |
| Power Tunability | 5 to 100% | |
| Power Variation, 8-Hour | ≤ 1% | |
| Modulation Frequency | ≤ 100 kHz | |
| Rise and Fall Times | ≤ 5 µs | |
| Beam Profile Switching Time | ≤ 30 ms | |
| Beam Diameter | Programmable (see table below) | |
| Wavelength | 1070 ± 10 nm | |
| Electrical | ||
| Supply Voltage | 200 to 240 VAC, single phase, 50/60 Hz | |
| Control Interface | External hardware control / RS-232 / Ethernet | |
| Mechanical | ||
| Dimensions (W x D x H) | 445 x 677 x 177 mm | |
| Optical Fiber | 5 or 10 m fiber with QBH connector | |
| Cooling Method | Water | |
| Environmental | ||
| Operating Temperature | 10 to 40 °C | |
| Storage Temperature | -10 to 60 °C | |
| Relative Humidity | 10 to 80% | |
