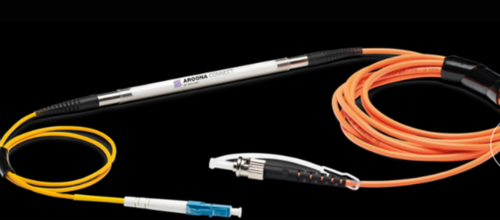

AROONA-CONNECT is designed for local network managers (IT managers in particular) who want to upgrade their network easily – without the intervention of a technician. AROONA-CONNECT is a passive solution for short and mid-range distance fiber links (< 550 m or 1800 ft.) It can upgrade any type of multimode fiber (62.5/125 µm or 50/125 µm), between or inside buildings. With two standard connectors, it makes the connection between modern active equipment and old generation fibers.
AROONA-CONNECT is designed for local network managers (IT managers in particular) who want to upgrade their network easily – without the intervention of a technician. AROONA-CONNECT is a passive solution for short and mid-range distance fiber links (< 550 m or 1800 ft.) It can upgrade any type of multimode fiber (62.5/125 µm or 50/125 µm), between or inside buildings. With two standard connectors, it makes the connection between modern active equipment and old generation fibers.
| PARAMETERS | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reach | Up to 550 m (1800 ft.) | |||||||||||||||
| Bandwidth | From 1 to 40 Gbps (under the condition of undamaged connectors) | |||||||||||||||
| Type of fiber | Single-mode fiber OS2 9/125 μm Multimode fiber OM2 50/125 μm |
|||||||||||||||
| Connectique | Single-mode connector LC/UPC or SC/APC Multimode connector ST/UPC, LC/UPC or SC/UPC |
|||||||||||||||
| Number of input/output | 1 | |||||||||||||||
| Legacy fiber compatibility | Any type of multimode fiber: 62.5/125 μm (OM1) or 50/125 μm (OM2/OM3/OM4/OM5) | |||||||||||||||
| Protocol and network | Dual (2 Connects) or BiDir (1 Connect) links Compatible with GPON, XGPON, XGSPON and WDM |
|||||||||||||||
| Insertion loss | < 2,5 dB (typical value: 2 dB) | |||||||||||||||
| Wavelength | [1250 nm – 1600 nm] | |||||||||||||||
| Transceiver compatibility | Single-mode transceivers, dual or bidirectional (type 1000BASE-LX/EX, 10GBASE-LR/ER, 40GBASE-LR4/ER4) |
|||||||||||||||
| Operation temperature | -40°C à +70°C ETSI EN 300 019-1-3 classe 3.4 | |||||||||||||||
| Shipping tolerance | ETSI EN 300 019-1-2 classe 2.3 | |||||||||||||||
| Dimensions | Total length: 3 m +/- 20 cm Dimensions of the tube (w/o cable boot): d125 x 7.5 mm3 Dimensions of the tube (w/cable boot): d180 x 7.5 mm3 Single-mode fiber length: 0.5 m +0/- 10cm Multimode fiber length: 2.5 m +/-10 cm Fiber tubing (SMF/MMF): 3 mm |
|||||||||||||||
| Reference AROONA-CONNECT |
|
|||||||||||||||
