Overview
Photonics Industries’ DC Series Nd:YLF Nanosecond Lasers combine ideal mJ pulse energy levels with high kHz repetition rates (single shot to 10 kHz), while maintaining short pulse widths, all within a compact, air-cooled form factor.
Hover

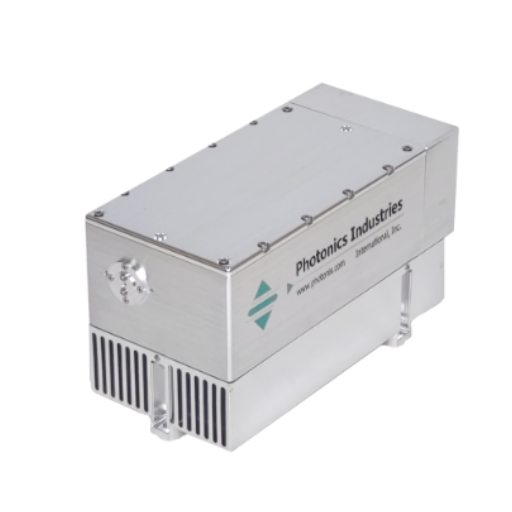

DC SERIES: High Energy UV/Green Laser
Photonics Industries’ DC Series Nd:YLF nanosecond lasers combine ideal mJ pulse energy levels (up to 1.5 mJ) with high kHz repetition rates (single shot to 10 kHz), while maintaining low pulse widths, all within a compact, air-cooled form factor. The DC Series stands the test of time, providing the highest pulse energy from one of the smallest footprint, lightest weight air-cooled industrial nanosecond lasers commercially available in UV and Green, and reliably performing for demanding industrial needs, maintaining long-term stabilities for consistent process quality. Owing to key patented technologies, intracavity harmonic generation is inherently a more efficient harmonic conversion that provides unmatched superior beam quality, natural TEM00 output, as well as better beam pointing stability in a simple, compact laser configuration making this laser the perfect tool for precision manufacturing.
Key Features
- Up to ~1.5mJ Pulse Energy at 1 kHz .
- True TEM00 Output .
- Short Pulse Widths .
- Air-cooled with Radiator Cooled Option .
- Robust & Compact Form Factor .
- Dynamic Pulse Energy Control – PEC .
- Position Synchronized Output – PSO .
- Power Monitoring and Self-Calibration .
Specifications
Specifications – DC Series Nd:YLF Nanosecond Lasers, Green Models
| DC50-527 | DC100-527 | DC150-527 | |
|---|---|---|---|
| Wavelength | 527nm | ||
| Average Power @ 3kHz | 1W | 2W | 3W |
| Pulse Energy @ 1kHz | ~0.5µJ | ~1mJ | ~1.5mJ |
| Pulse Width @ 1kHz | ~30ns | ||
| Pulse Repetition Rate | Single shot to 10 kHz | ||
| Pulse-to-Pulse Stability | <3% rms | ||
| Long-Term Power Stability | <2% rms | ||
| Beam Spatial Mode & M² | TEM00 M2 ≤ 1.2 | ||
| Beam Divergence (nominal) | < 2 mrad | ||
| Beam Diameter at Exit (nominal) | ~ 0.4mm | ~0.7mm | |
| Beam Roundness | >85% | ||
| Beam Pointing Stability | <25 µrad | ||
| Polarization Ratio | Vertical; >100:1 | ||
| Operational Specifications and Characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up Time | < 5 minutes from standby, <10 minutes from cold start | ||
| Electrical Requirement | 100-240 V AC – 15 V DC, 13.4 A [PSU Included] | ||
| Line Frequency | 50-60 Hz | ||
| Power Consumption | ~50W | ~130W | |
| Dimensions | 8.5 x 4 x 5 in | 11 x 5 x 5 in | |
| Weight | ~6 lbs (~2.7 kg) | ~15.5 lbs (~7 kg) | |
| Environmental Requirements | |||
| Ambient Temperature | 15°C to 30°C (59°F to 86°F) Operating Range | ||
| Relative Humidity | 0% to 80% max, non-condensing | ||
| Storage Conditions | -10°C to 40°C, sea level to 12000 m | ||
| Cooling System | Air-Cooled | ||
Specifications – DC Series Nd:YLF Nanosecond Lasers, UV Models
| DC50-351 | DC100-351 | DC150-351 | |
|---|---|---|---|
| Wavelength | 351nm | 351nm | 351nm |
| Average Power @ 3kHz | 0.5W | 1W | 1.5W |
| Pulse Energy @ 1kHz | ~250µJ | ~500µJ | ~1mJ |
| Pulse Width @ 1kHz | ~30ns | ||
| Pulse repetition rate | Single shot to 10 kHz | ||
| Pulse-to-pulse stability1 | <3% rms | ||
| Long-term power stability2 | <2% rms | ||
| Beam spatial mode & M2 | TEM00 – M2 ≤ 1.1 | ||
| Beam divergence (nominal) | < 2 mrad | ||
| Beam diameter at exit (nominal) | ~ 0.4mm | ~ 0.4mm | ~ 0.5mm |
| Beam roundness | >85% | ||
| Beam pointing stability | <25 µrad | ||
| Polarization ratio | Horizontal; >100:1 | ||
| Operational Specifications and Characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up time | < 5 minutes from standby, <10 minutes from cold start | ||
| Electrical requirement | 100-240 V AC – 15 V DC, 13.4 A [PSU Included] | ||
| Line frequency | 50-60 Hz | ||
| Power consumption | ~50W | ~50W | ~130W |
| Dimensions | 8.5 x 4 x 5 in | 8.5 x 4 x 5 in | 11 x 5 x 5 in |
| Weight | ~6 lbs [~2.7 kg] | ~6 lbs [~2.7 kg] | ~15.5 lbs [~7 kg] |
| Environmental Requirements | |||
| Ambient temperature | Ambient 15°C to 30°C (59°F to 86°F) Operating Range | ||
| Relative humidity | 0% to 80% max, non-condensing | ||
| Storage conditions | -10°C to 40°C; sea level to 12000 m | ||
| Cooling system3 | Air-Cooled | ||
Applications
- Laser Cutting, drilling, welding, and marking .
- Flat panel display repair (LCD/LED/OLED) and laser-assisted chemical vapor deposition (LACVD).
- Flexible printed circuit boards (FPCB), printed circuit boards (PCB), and liquid crystal polymer (LCP) microprocessing.
- Stereolithography (SLA), rapid prototyping 3D printing systems, and UV laser 3D printing.
- Mass spectrometry and MALDI systems.
