Overview

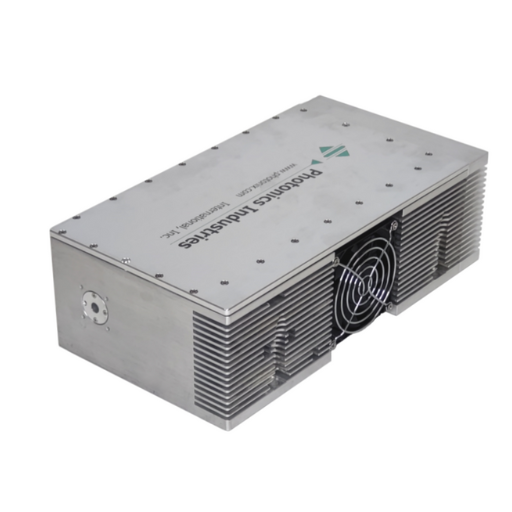

Photonics Industries’ DP Series diode-pumped solid-state (DPSS), Q-Switched, high energy, short pulse width lasers combine up to 20mJ pulse energy levels, TEM00 output, and exceptional power efficiency with 10X lower heat load vs. closest competitors. With the ability to select and/or blend multiple wavelengths, the DP Series is an ideal, compact air-cooled package for industrial applications, from intra-marking glass, to repairing displays. Scientific applications also benefit where the high pulse energies align well for atomic excitation research or spectroscopy systems.
Key Features
• Up to ~50mJ Pulse Energy at 100Hz.
• True TEM00 Output.
• Short Pulse Widths.
• Air-cooled with Radiator Cooled Option.
• Robust & Compact Form Factor.
• Dynamic Power Control – PWC.
• Optional Low Jitter operation w/ short-shot energy control [<1ns].
• Power Monitoring and Self-Calibration.
Applications
• Material Processing: Marking, scribing, grooving.
• Ion generation, atomic excitation, and quantum physics.
• LCD/LED/OLED panel repair systems.
• LIBS and advanced spectroscopy systems.
• Non-Destructive Testing: Incorporates laser ultrasonics, acoustic microscopy, and photoacoustic.
• Thin Film Technology: Specializes in pulsed laser deposition (PLD).
• OPO Pumping: Supports optical parametric oscillator systems.
