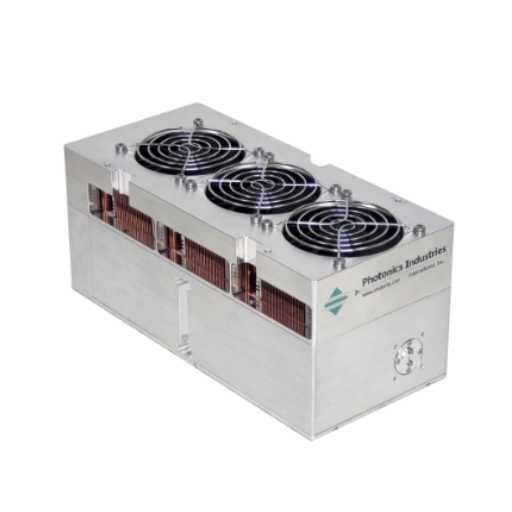

    DX AC SERIES: Air Cooled Green/UV Laser

    The Photonics Industries DX-AC Series is a fully air-cooled, all-in-one laser solution for UV marking, specialty micromachining, and additive manufacturing. It delivers industry-leading beam quality, stability, and precision through Photonics Industries’ pioneering intracavity UV and Green harmonic technology, ensuring higher reliability and lower COO. With its compact design that integrates all electronics within the laser head eliminating the need for a separate controller or utility module and minimizing footprint. The laser is “plug-and-play” with a simple 15V power supply for ease-of-integration.

    Download Data SheetEnquiry Now

    Overview

    The Photonics Industries DX-AC Series offers a compelling solution for applications from ultraviolet marking, specialty material micromachining, and additive manufacturing.

    These fully air-cooled lasers deliver industry-leading performance in beam quality, stability, and precision control. This is achieved through Photonics Industries’ pioneering intracavity UV and Green harmonic technology, ensuring higher reliability and lower COO. The DX-AC Series achieves this high performance in a remarkably compact package. The all-in-one (AIO) design integrates all electronics within the laser head, eliminating the need for a separate controller or utility module and minimizing footprint. The laser is “plug-and-play” with a simple 15V power supply for ease-of-integration.

    Key Features

    • Up to ~400uJ Pulse Energy at 50 kHz .
    • True TEM00 Output .
    • Short Pulse Widths .
    • Air-cooled with Base Plate Cooled Option .
    • Robust & Compact Form Factor .
    • Dynamic Pulse Energy Control – PEC .
    • Position Synchronized Output – PSO .
    • Power Monitoring and Self-Calibration .

    Specifications

    Specifications – DX-AC Series
    Specification DX-532-2 DX-532-10 DX-532-15 DX-532-20
    Wavelength 532nm
    Average Power 2W @ 50kHz 10W @ 50kHz 15W @ 50kHz 20W @ 70kHz
    Pulse Energy @ 50kHz ~40μJ ~200μJ ~300μJ ~400μJ
    Pulse Width @ 50kHz ~10-15ns
    Pulse repetition rate¹ Single shot to 300 kHz
    Pulse-to-pulse stability² <2% rms
    Long-term power stability³ <2%
    Beam spatial mode & M² TEM00 – M² <1.1
    Beam divergence (nominal) ~2.5 mrad ~4 mrad
    Beam diameter at exit (nominal) ~0.5mm
    Beam roundness ~90%
    Beam pointing stability <20 μrad
    Polarization ratio Vertical; >100:1
    Operational Specifications and Characteristics
    Interface RS232, Ethernet, Software GUI, External TTL Triggering
    Warm-up time < 5 minutes from standby, <10 minutes from cold start
    Electrical requirement 100-240 V AC – 15 V DC, 13.4 A [PSU Included]
    Line frequency 50-60 Hz
    Power consumption ~50W ~130W
    Dimensions 9 x 5 x 3.38 in [228.6 x 127 x 85.9mm] 11 x 5 x 5 in [279.4 x 127 x 127 mm]
    Weight ~10 lbs [~4.5 kg] ~15.5 lbs [~7 kg]
    Environmental Requirements
    Ambient temperature⁴ 15°C to 30°C (59°F to 86°F) Operating Range
    Humidity Relative humidity 0% to 80% max, non-condensing
    Storage conditions -10°C to 40°C; sea level to 12000 m
    Storage Humidity 0% to 80% relative Humidity, non-condensing
    Cooling system Air-Cooled / Base Plate Cooled⁵



    Specification DX-355-1 DX-355-5 DX-355-8 DX-355-10
    Wavelength 355nm
    Average Power @ 50kHz 1W 5W 8W 10W
    Pulse Energy @ 50kHz ~20µJ ~100µJ ~160µJ ~200µJ
    Pulse Width @ 50kHz ~10-15ns
    Pulse repetition rate Single shot to 200 kHz
    Pulse-to-pulse stability <2% rms
    Long-term power stability <2% rms
    Beam spatial mode & M² TEM₀₀ – M² < 1.1
    Beam divergence (nominal) ~2.5 mrad
    Beam diameter at exit (nominal) ~0.3mm ~0.4mm
    Beam roundness ~90%
    Beam pointing stability <25 urad
    Polarization ratio Vertical; >100:1
    Operational Specifications and Characteristics
    Interface RS232, Ethernet, Software GUI, External TTL Triggering
    Warm-up time < 5 minutes from standby, <10 minutes from cold start
    Electrical requirement 100-240 V AC – 15 V DC, 13.4 A [PSU Included]
    Line frequency 50-60 Hz
    Power consumption ~50W ~130W
    Dimensions 9 x 5 x 3.38 in [228.6x 127x 85.9mm] 11 x 5 x 5 in – [279.4 x 127 x 127 mm]
    Weight ~10 lbs [~4.5 kg] ~15.5 lbs [~7 kg]
    Environmental Requirements
    Ambient temperature Ambient 15°C to 30°C (59°F to 86°F) Operating Range
    Relative humidity 0% to 80% max, non-condensing
    Storage conditions -10°C to 40°C; sea level to 12000 m
    Humidity 0% to 80% relative Humidity, non-condensing
    Cooling system Air-Cooled / Base Plate Cooled

    Applications

    • Marking & Scribing .
    • Silicon, PERC and Solar Cell .
    • PCB & Polymer Cutting & Drilling .
    • Selective Annealing and Doping .
    • Copper & Gold Sintering .
    • Gold & ITO Scribing .
    • Resistor Trimming .
    • LIDAR & Laser Ranging .
