Overview
527nm YLF
Nanosecond Lasers
TEM00 pulse energy: 35 mJ at 1 kHz, 527 nm.
Hover

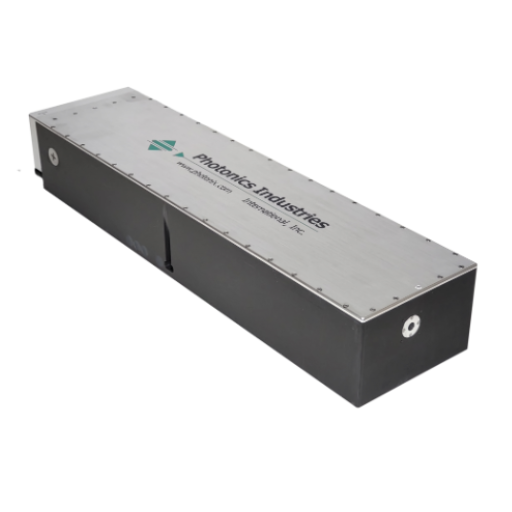

DX ND: YLF SERIES: High Energy Green Lasers
Photonics Industries’ DX Nd:YLF Series nanosecond lasers combine high pulse energies (up to 35 mJ) with a simple, rugged, and efficient form factor, all from one fully independent laser resonator. Dual Head configurations can go up to 70 mJ. The DX Nd:YLF Series uniquely fulfills both criteria of beam spatial mode TEM00 (M2 < 1.2) while achieving high millijoule-level pulse energies, enabling scientific applications for ultrafast pumping amplifiers or industrial applications such as in diamond microprocessing.
Key Features
▪ High pulse energy TEM00 nanosecond laser Up to 35 mJ, Green.
▪ Two fully independent lasers, integrated into a Dual Head configuration available Up to 70 mJ, Green.
▪ Exceptional repetition rate control: Single shot up to 10 kHz.
▪ Multimode beam option available
Specifications
| DX-527-25 | DX-527-35 | ||
|---|---|---|---|
| Beam and output specifications | |||
| Wavelength | 527 nm | ||
| Average Power | 38 W at 3 kHz | 50 W at 3 kHz | |
| Pulse Energy | 25 mJ at 1 kHz | 35 mJ at 1 kHz | |
| Pulse width | ~90 ns at 1 kHz | ~100 ns at 1 kHz | |
| Pulse repetition rate | Single shot to 10 kHz | ||
| Pulse-to-pulse stability | <1% rms | ||
| Long-term power stability | <0.5% rms | ||
| Beam spatial mode | TEM₀₀ M² <1.2 | ||
| Beam pointing stability | <25 urad | ||
| Beam divergence | 2 mrad ±15% | ||
| Beam diameter at exit | ~1 mm | ||
| Polarization ratio | Vertical; 100:1 | ||
| Operational specifications and system characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up time | < 5 minutes from standby, or cold start | ||
| Electrical requirement | 100-240 V AC | ||
| Line frequency | 50-60 Hz | ||
| Ambient temperature | Ambient 15°C to 30°C (59°F to 86°F) Operating Range, Relative Humidity 90% Max., non-condensing | ||
| Laser head Dimensions (LxWxH) | 26 x 6.5 x 4.23 in | ||
| Power supply Dimensions (LxWxH) | 15 x 10.2 x 3.5 in | ||
| Cooling system | Water-cooled | ||
