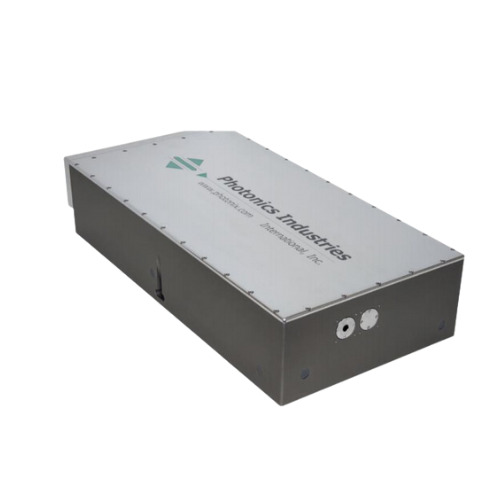

Photonics Industries FS Series Femtosecond Lasers offer short pulse widths (< 450 fs), high output power in a market-leading compact form factor (up to 100 W at wavelength 1030 nm), and high pulse repetition rates up to 8 MHz or greater (fixed at ~32 MHz available on request). With high single pulse energy, up to 700 µJ, all-in-one (AIO) form factor (no separate chassis for PSU or utility), and high power efficiencies (low power consumption less than 600 W), the FS is an ideal laser for industrial system integration or for scientific research applications.
Photonics Industries FS Series Femtosecond Lasers offer short pulse widths (< 450 fs), high
output power in a market-leading compact form factor (up to 100 W at wavelength 1030 nm),
and high pulse repetition rates up to 8 MHz or greater (fixed at ~32 MHz available on
request). With high single pulse energy, up to 700 µJ, all-in-one (AIO) form factor (no
separate chassis for PSU or utility), and high-power efficiencies (low power consumption
less than 600 W),
Specifications – FS Series Femtosecond Lasers, IR Models
| FS1-1030-5 | FS1-1030-50 | FS2-1030-100 | |
|---|---|---|---|
| Beam and output specifications | |||
| Wavelength | 1030 ± 5 nm | ||
| Average power | 5 W at 1 MHz | 50 W at 1 MHz | 100 W at 1 MHz |
| Pulse energy | 8 µJ at 100 kHz | 250 µJ at 100 kHz | 700 µJ at 100 kHz |
| Pulse width | < 450 fs to 5 ps | ||
| Pulse repetition rate | Single shot to 2 MHz (option up to 8 MHz) | ||
| Pulse-to-pulse stability | ~1% rms | ||
| Long term power stability | ≤ 1% rms | ||
| Beam spatial mode | TEM₀₀ M² < 1.3 | ||
| Beam pointing stability | < 25 µrad | ||
| Operational specifications and system characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up time | < 30 minutes | ||
| Electrical requirement | 100-240 V AC, Line Frequency 50-60 Hz | ||
| Power consumption | <600 W | <900 W | |
| Climate | Ambient 15°C to 30°C (59°F to 86°F) Operating Range, Relative Humidity 90% Maximum, non-condensing | ||
| Dimensions (LxWxH) | 20 x 10 x 4.25 in. | 20 x 10 x 4.25 in. | 22 x 10 x 4.25 in. |
| Vibrational tolerance | Up to 3g | ||
| Cooling system | Water-cooled | ||
Specifications – FS Series Femtosecond Lasers, GRN Models
| FS1-515-2.5 | FS1-515-25 | FS2-515-50 | |
|---|---|---|---|
| Beam and output specifications | |||
| Wavelength | 515 ± 3 nm | ||
| Average power | 2.5 W at 1 MHz | 25 W at 1 MHz | 50 W at 1 MHz |
| Pulse width | < 400 fs to 5 ps | ||
| Pulse repetition rate | Single shot to 2 MHz (option up to 8 MHz) | ||
| Pulse-to-pulse stability | < 2% rms | ||
| Long term power stability | ≤ 1% rms | ||
| Beam spatial mode | TEM₀₀ M² ≤ 1.3 | ||
| Beam pointing stability | ≤ 25 µrad | ||
| Operational specifications and system characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up time | < 30 minutes | ||
| Electrical requirement | 100-240 V AC, Line Frequency 50-60 Hz | ||
| Power consumption | <600 W | <900 W | |
| Climate | Ambient 15°C to 30°C (59°F to 86°F) Operating Range, Relative Humidity 90% Maximum, non-condensing | ||
| Dimensions (LxWxH) | 20 x 10 x 4.25 in. | 20 x 10 x 4.25 in. | 22 x 10 x 4.25 in. |
| Vibrational tolerance | Up to 3g | ||
| Cooling system | Water-cooled | ||
Specifications – FS Series Femtosecond Lasers, UV Models
| FS1-343-1 | FS1-343-15 | FS2-343-30 | |
|---|---|---|---|
| Wavelength | 343 ± 2 nm | 343 ± 2 nm | 343 ± 2 nm |
| Average power | 1 W at 1 MHz | 15 W at 1 MHz | 30 W at 1 MHz |
| Pulse width | < 400 fs to 5 ps | ||
| Pulse repetition rate | Single shot to 2 MHz (option up to 8 MHz) | ||
| Pulse-to-pulse stability | ~2% rms | ||
| Long term power stability | ≤ 1% rms | ||
| Beam spatial mode | TEM00 M2 ≤ 1.3 | ||
| Beam pointing stability | ≤ 25 µrad | ||
| Operational Specifications and System Characteristics | |||
| Interface | RS232, Ethernet, Software GUI, External TTL Triggering | ||
| Warm-up time | < 30 minutes | ||
| Electrical requirement | 100-240 V AC, 32 V DC, 28 A | 100-240 V AC, 32 V DC, 36 A | |
| Power consumption | < 600 W | < 900 W | |
| Climate | Ambient 15°C to 30°C (59°F to 86°F), Relative Humidity 90% Maximum, non-condensing | ||
| Dimensions (LxWxH) | 20 x 10 x 4.25 in. | 29.5 x 10 x 4.25 in. | |
| Vibrational tolerance | Up to 3g | ||
| Cooling system | Water-cooled | ||
