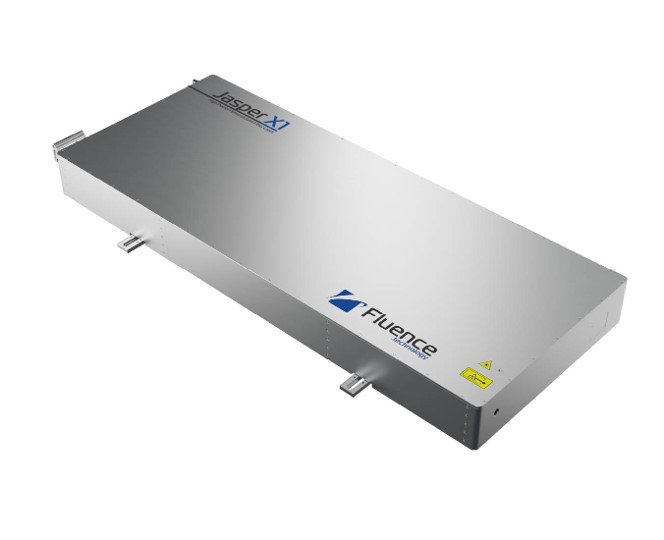

The Jasper X1 is a high-performance femtosecond laser system designed for maximum flexibility and precision in demanding applications. It features extended burst lengths with flexible envelope adjustment (Custom Envelope Burst – CEB), along with tunable pulse durations of up to 20 ps. This allows for precise process development and optimization tailored to wide range of materials and applications. With Advanced Pulse-on-Demand (APoD) and nanosecond-level jitter, Jasper X1 delivers exceptional pulse timing precision – ideal for enhancing edge definition, corner processing, and maximizing duty cycles. Built as a robust, all-fiber, SESAM-free system, Jasper X1 ensures consistent performance, long-term stability, and true maintenance-free 24/7 operation.
| Model | JX30-100 | JX30-200 | JX30-200P | JX60-200 | JX60-200P |
|---|---|---|---|---|---|
| Central Wavelength | 1030 ± 5 nm | ||||
| Average Power | 30 W | 30 W | 30 W | 60 W | 60 W |
| Max. Pulse Energy | 100 μJ | 200 μJ | 200 μJ | 200 μJ | 200 μJ |
| Nominal Pulse Repetition Rate (PRR) | 300 kHz | 150 kHz | 150 kHz | 300 kHz | 300 kHz |
| Pulse Width | < 270 fs | < 270 fs | < 270 fs | < 270 fs | < 270 fs |
| Tuning Range | <270fs-8ps | <270 fs – 20 ps | |||
| Pulse Repetition Rate (PRR) | Single-Shot to 20 MHz (2) | ||||
| Pulse-on-Demand Max. PRR / Jitter | Standard (based on pulse picker) | Standard (based on pulse picker) | Advanced 1 MHz / < 50 ns |
Standard (based on pulse picker) | Advanced 1 MHz / < 50 ns |
| Max. Burst Energy | 100 μJ | 300 μJ | 300 μJ | 400 μJ | 400 μJ |
| No. of Pulses in MHz Burst Mode | 2 – 80 | 2 – 80 | 2 – 12 | 2 – 80 | 2 – 12 |
| Custom Envelope Burst (5) | Optional | Included | – | Included | – |
| Beam Quality, M2 | < 1.2 (1.1 typical) | ||||
| Beam Circularity | > 87% | ||||
| Beam Divergence | < 1 mrad | ||||
| Beam Diameter | 2.5 ± 0.5 mm (6) | ||||
| Polarization, PER | Vertical, PER > 28 dB | ||||
| Beam Pointing Stability | < 20 μrad/°C | ||||
| Long Term Power Stability – 100 h | < 0.5 % | ||||
| Pulse-to-Pulse Energy Stability – 24 h | < 1 % | ||||
| Triggering | External / Internal | ||||
| Pulse Control | Internal / External analog power modulation, Pulse picker, Burst mode, Custom Envelope Burst (CEB) | ||||
| Options | Harmonic Module – 515 nm, 343 nm, 257 nm (automatic selection), Automated Mechanical Shutter | ||||
| Cooling | Water | ||||
