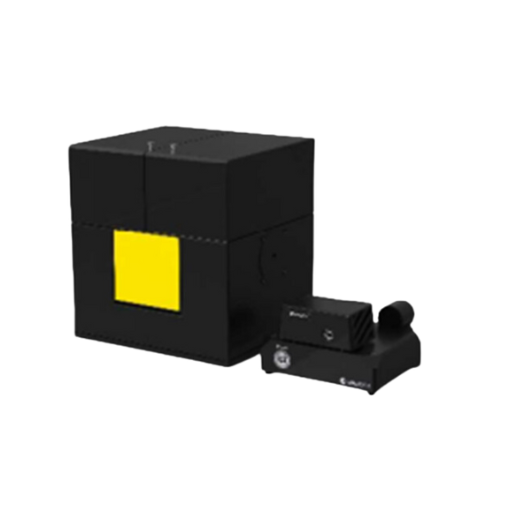

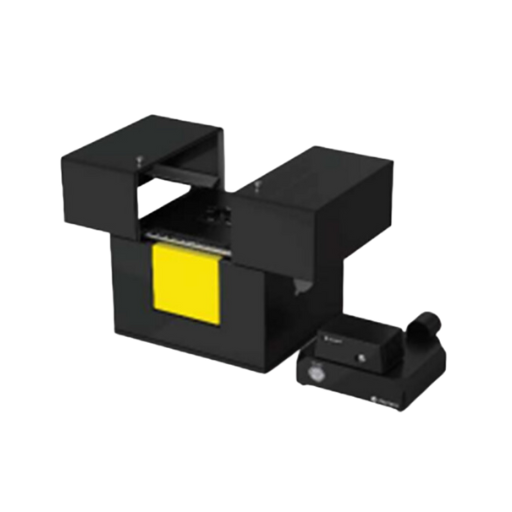

LQ-50X-EL: High Speed/High Sensitivity Electroluminescence Efficiency Test System

Key Features

• Adopts single-photon detection technology to overcome the long exposure time (1~3 seconds) required by traditional spectrometers at low brightness, thus speeding up the test to ensure its accuracy and efficiency.
• Adopts NIR-enhanced optical design and components to cover wavelengths up to 1100 nm, extendable to 1700 nm.
• The LQ-50X has a compact product design for direct integration with glove boxes. At the same time, the LQ-50X is also suitable for various types of samples.
• The LQ-50X can quickly test the luminescence spectrum at each voltage, obtaining multiple parameter values such as irradiance, luminance, CIE coordinates, etc. The non-repeatability of the measured inorganic LED test is less than 0.2%.
