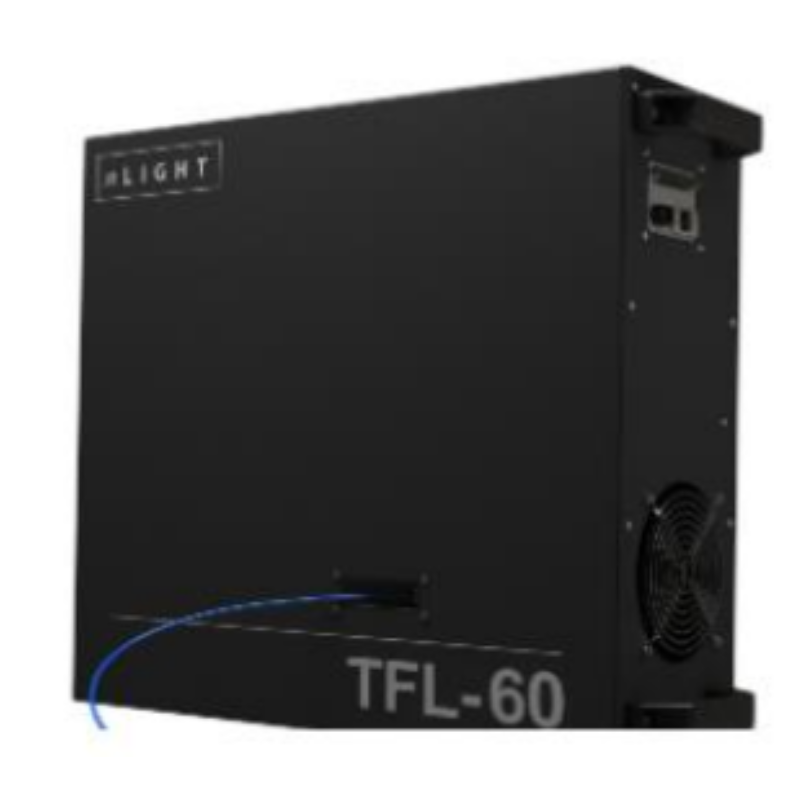

    TFL-60 & TFL-100: Medical Fiber Lasers

    nLIGHT® 2 μm series Continuous Wave (CW) and Quasi-Continuous Wave (QCW) fiber lasers deliver CW powerup to 100 W and QCW pulsed power up to 625 W from a compact, air cooled, 48 V DC powered package. These highly reliable and energy efficient lasers operate at 1940nm wavelength and provides up to 7J of energy for your most demanding applications. Options include a high-power multi-mode output or a medium power single mode output, ideal for a diverse set of medical, industrial, scientific, aerospace and defense applications.

    Download Data SheetEnquiry Now

    Key Features

    • CW & QCW operation modes: Engineered for versatility, nLIGHT 2 micron series can operate in both continuous mode as well as quasi continuous mode.​​
    • Ease of use: Thoughtfully designed with customizable interface locations and fiber lengths to simplify system integration.
    • Precision control of power & energy: Provides up to 625 W of peak power, with pulse energies up to 7J, and can be operated up to 10kHz of modulated repetition rate.
    • Ideal for diverse set of applications: Offered as single mode or multi mode output and wavelengths from 1.9µm to 2.0µm to meet your application needs.
    • Plug & play interface: Powered by nLIGHT’s industry leading, highly reliable pump diodes using a standard 48 V DC supply.
    • Compact design: Simple air cooled package eliminates the hassle with water connections and chillers.

    Specifications

    Models TFL-60 TFL-100
    Optical Specifications
    Mode of Operation CW / QCW CW / QCW
    Polarization Random Random
    Maximum Peak Power 625 W 625 W
    Maximum CW Power 60 W 100 W
    Power Tunability 3 – 100% 3 – 100%
    Modulation Frequency ≤ 10 kHz ≤ 10 kHz
    Rise and Fall Times ≤ 10 μs ≤ 10 μs
    Maximum Pulse Energy 7 J 7 J
    Output Beam Single mode, 22 μm MFD Multi-mode, 75 μm core
    Beam Quality <1.3 <5

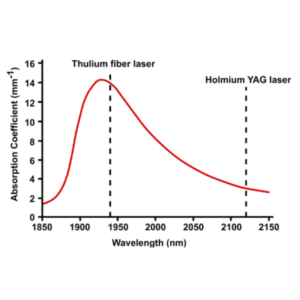

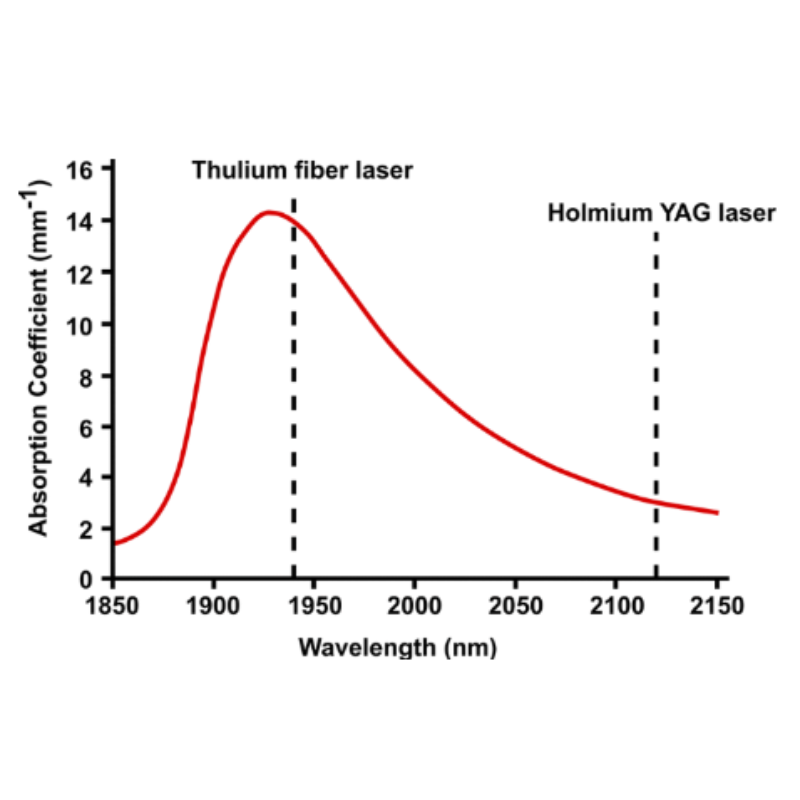

    Wavelength 1940 ± 10 nm 1940 ± 10 nm
    Electrical Specifications
    Operating Voltage, DC 48 V 48 V
    Control Interface External hardware
    Mechanical Specifications
    Dimensions 540 x 481 x 179 mm
    Optical Fiber 0.9 m, FC/A connector
    Cooling Method Air
    Environmental Specifications
    Operating Temperature +15 to +30°C
    Storage Temperature -10 to +60°C
    Relative Humidity 10 to 80%

    Applications

    • Kidney Stone Treatment
    • Scientific Research
