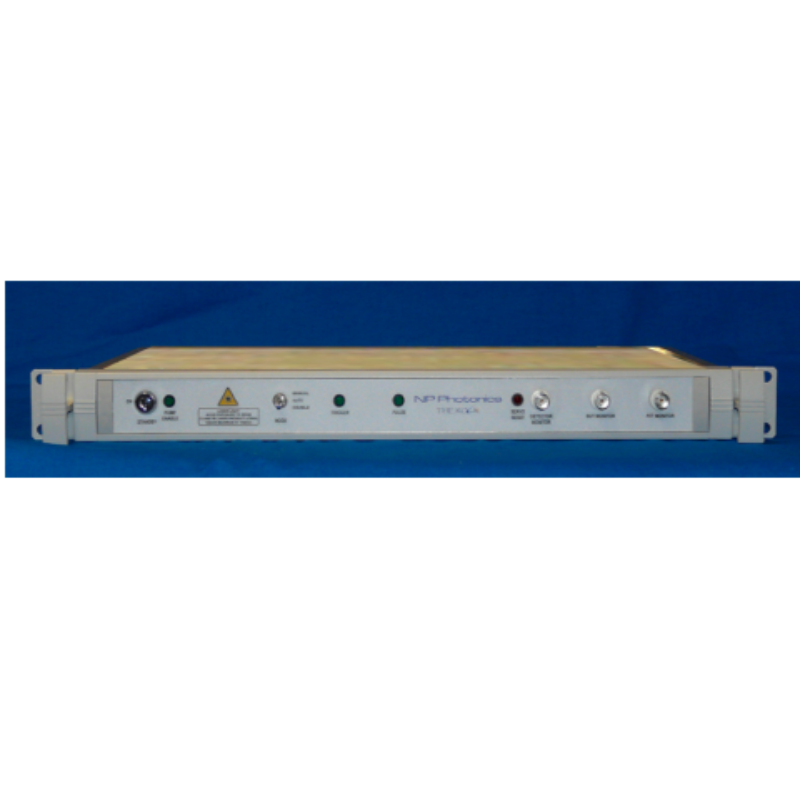

The Rock Injection Seeder System is a highly stable, low-noise injection seeder system with a very narrow linewidth and integrated noise reduction.
| Parameter | Value |
|---|---|
| Wavelength Range | 1530–1565, 1030-1080 nm |
| Output Power | 10mW * |
| Longitudinal Mode | Single Frequency |
| Spectral Line Width | < 5kHz |
| Polarization Extinction Ratio (PER) | > 20d |
| Tuning Range (Thermal) | 30GHz |
| Connectors | Fiber Connectors and Free Space Collimator |

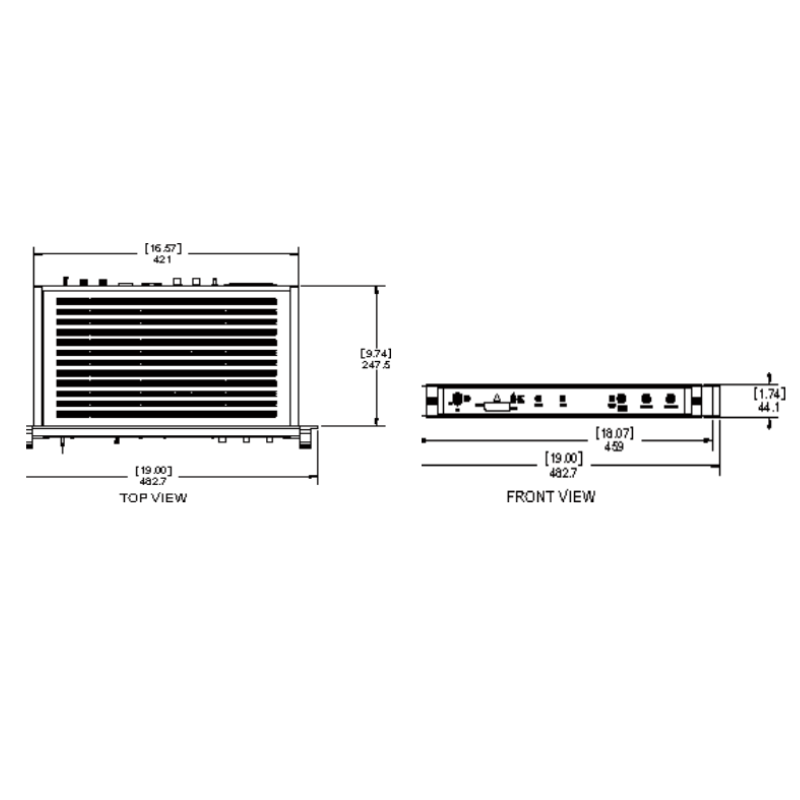

| Package Dimension | 265.8 x 482.7 x 44.1mm |
• Narrow Linewidth (Long Coherence Length) <5kHz.
• >10mW Output Power.
• Active Build Up Time (BUT) Reduction.
• Integrated Noise Reduction.
• High Wavelength Stability.
• PZT and PZT Mount Included.
• Microporocessor Control.
