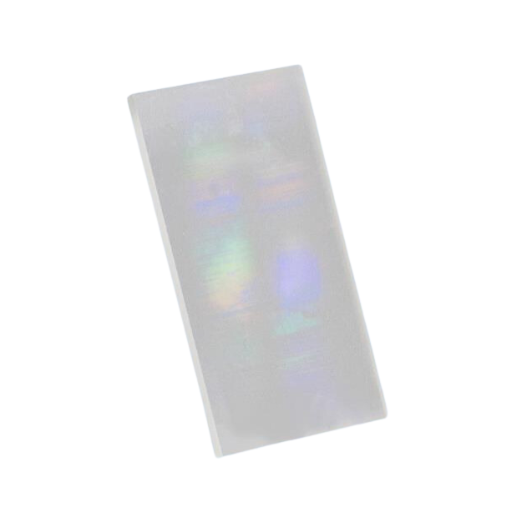

    PPSLT CRYSTAL

    PPSLT is a leading nonlinear crystal for frequency conversion over broadband range from UV to mid IR. It allows efficient frequency conversions for high power generations in deep UV to mid IR regions where QPM has a limitation. PPSLT’s unique features and Raicol’s state-of-the-art polling capabilities enable to design of advanced structures such as Fan-Out polling to support tunable wavelength conversion as well as devices that can generate high-power THG on a single device, thus saving space and complicated systems.



    Overview

    PPSLT (Periodically Poled Lithium Niobate) is a premier nonlinear crystal designed for efficient frequency conversion across a broad spectrum, ranging from ultraviolet (UV) to mid-infrared (IR) wavelengths. This versatility makes it an exceptional choice for various high-power applications, particularly where traditional quasi-phase matching (QPM) methods may face limitations.

    PPSLT crystals excel in generating high power outputs in the deep UV and mid-IR regions, enabling advanced photonic applications and enhancing the capabilities of laser systems. Their ability to facilitate efficient frequency conversions ensures that PPSLT crystals are widely utilized in industries requiring precision and reliability in nonlinear optical processes.

    Key Features

        Fan-out:

    • High photorefractive damage resistance.
    • High nonlinear coefficient (>7.5pm/V).
    • High power Green light generation: >10 W.
    • High thermal conductivity.                                                                                                                                                                                                                                                                                                  ppSLT waveguide: Laser-Written waveguide inside ppSLT
    • Order of magnitude increase in efficiency
    • Watt class frequency conversion
    • UV, visible -MIR range
    • Circular output beam
    • High power and High conversion efficiencies

    Specifications

    • Aperture Typical: 0.5 mm*2mm.
    • Length: Up to 40 mm.
    • Transperency Range: 300 nm -5,000 nm.
    Note: Above values depends on the device
    design and periodicity.
