Overview
The SINUS-360 PRO is the ideal solar simulator for solar cell production lines. With unparalleled spectral match to AM1.5G and exceptional long term stability, you have confidence in fast, reliable I-V characteristics without frequent recalibration and fine tuning. Use advanced LED test sequence to uncover process related issues and guide process improvements.
HIGHLIGHTS:
- The LED Advantage: Industry leading spectrum quality and spectral match to AM1.5G.
- Long Term Cost Savings: High lifetime, stable light source € eliminates frequent calibration, maintenance and downtimes.
- World-Class Light Engine: Exceeds Class A+A+A+ (IEC 60904-9), calibration lab level accuracy.
- Industry-Grade Hardware: Proven reliability 1000+ times in the field around the world.
- Compact Form Factor: For easy integration into production line automation systems.
- Multi-Factor Measurement: Like red-blue response for process monitoring and root cause tracing.
Key Features
Light Engine Features:
The light engine consists of 27 individually controlled sets of LEDs with different peak wavelengths. A special optical lens system ensures perfect color mixing for each spot on the solar cell. Built-in spectrometer and intensity sensor in combination with calibration routine make re-calibration very simple.
| Light source |
Multiple individually controlled sets of LEDs with different peak wavelengths |
| SPD |
≤ 17% |
| SPC |
≥ 98% |
| Ready for tandem cells |
Additional LEDs between 600 – 800 nm for probing the SR transition of the top and bottom cell for e.g. Si-Pero tandem cells |
| Special optical lens system |
The multi-level special optical lens system ensures that all different wavelengths are perfectly mixed so that each spot in the test plane is illuminated with the identical spectrum |
| Feedback system |
Built-in intensity sensor measures total intensity during each single measurement multiple times. Adjustments, if necessary, are made on the fly |
| Spectrum |
AM1.5g, AMO or customer defined spectrum including irradiation by single LED channels |
| Spectral control |
Built-in spectrometer ensures monitoring of the current spectrum for any flash length. Measured spectrum is displayed on GUI for each flash |
| Intensity range for AM1.5g |
Qualified intensities: 0.3, 0.5, 1.0 and 1.6 suns
Intermediate intensities can be set individually |
| Intensity range for each single LED channel |
Adjustable from 10% up to 100% |
| Irradiance time |
Adjustable from 10 ms up to continuous illumination |
| Test area |
260 mm x 260 mm (at non-uniformity of <1%) |
| Cooling |
Water-cooling for high stability and large life span |
I-V Electronics Features:
The very fast active electronic load allows 4 quadrant measurements. A 14-bit calibrated Analog-Digital converter and calibrated, traceable shunt resistor fulfils the highest demands for accuracy and precision.
| Voltage resolution |
0.025% of 2 V / 20 V |
| Current resolution |
0.025% of 250 mA / 2.5 A / 25 A |
| Static Repeatability [(max-min)/(max+min)] |
Isc: 0.03%, Voc: 0.03%, FF: 0.075%, PMPP: 0.075% |
| I-V curve measurement time |
Adjustable from 20 ms up to 250 ms (or optionally longer on demand) |
System Features:

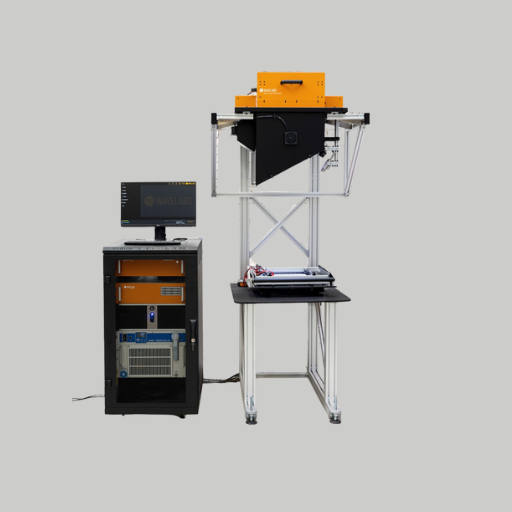

SINUS-360 ADVANCED is designed for R&D laboratories and for certification purposes.
| Measurement times for standard recipe (1 sun, 0.5 sun, dark, EL) |
Typically, around 150 ms;
Fast measurement even possible for high-capacitance cells like HJT, IBC and TOPCon due to innovative LED technology with RapidWAVE® |
| Sorting |
As required: up to 256 classes |
| Communication for inline integration |
Via hardware signals, RS232, TCP/IP, ProfiNET |
| Control levels |
Operator or engineer levels |
| User interface |
Monitor, keyboard, mouse |
| Industrial PC |
OS Windows |
| Required environment |
22.5 °C < T < 30 °C, 40 – 60% humidity, non-condensing.
Maximum change of humidity 1%/h |
