MPI TS3000-HP is a 200 mm Automated Probe The Dedicated System for mmW, Load-pull, SiPH and Product Engineering.
Hover

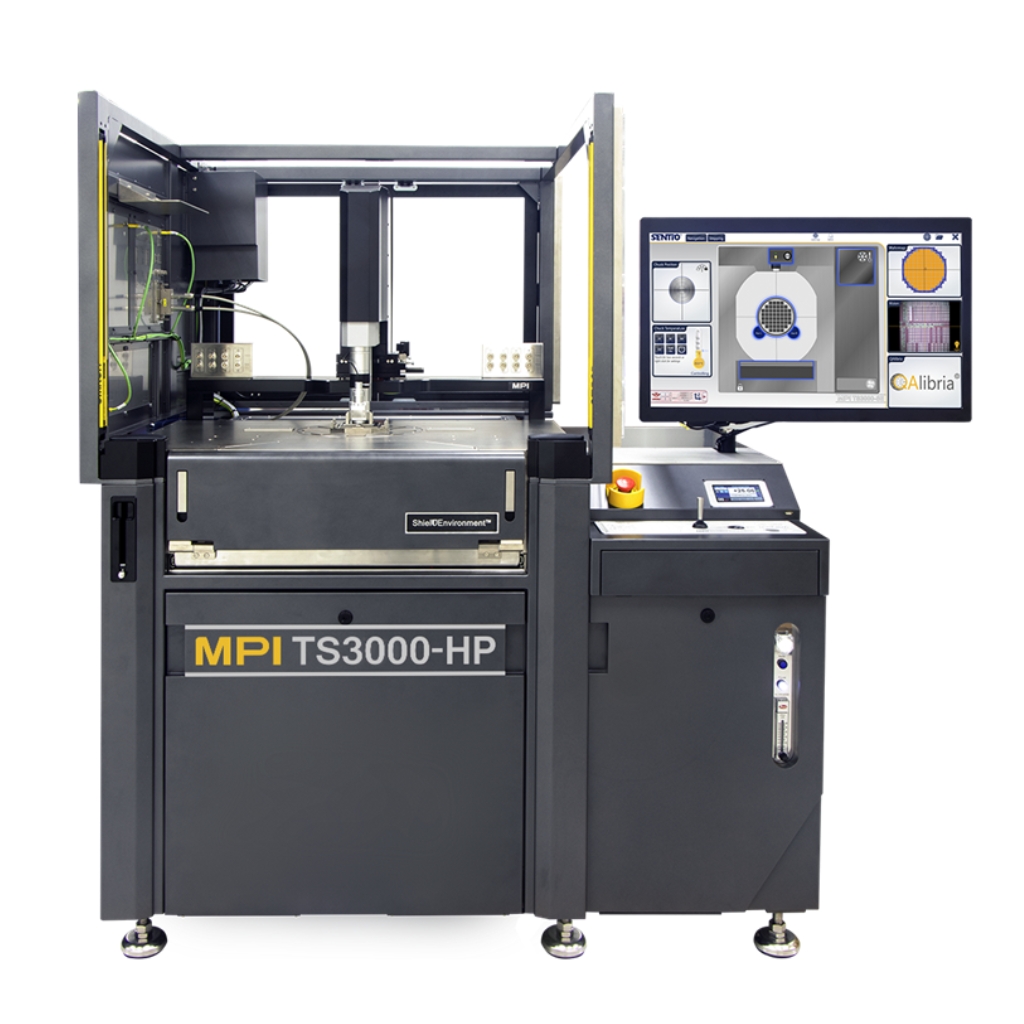

TS2000-IFE SERIES: 200 mm Fully Automated Probe Systems with IceFreeEnvironment
MPI TS2000-IFE Series is a Fully Automated Probe System for up to 200 mm wafers, for dedicated mmW, load-pull, SiPh, and Product Engineering.
Key Features
Designed for Variety of On-Wafer Applications
- DC-IV / DC-CV / Pulsed-IV applications.
- Silicon photonics.
- RF, mmW, load-pull applications & 4-port setup.
- IC Design Validation, Failure Analysis in wide temperature range from -60 to 300 °C.
- Wafer Level Reliability.
Extended Flexibility
- MPI IceFreeEnvironment™ for using MicroPositioners and probe cards simultaneously, even at negative temperature.
- Programmable microscope movements for more automation and ease of use.
- The shortest cable interface to IC tester.
- Minimize the platen-to-chuck distance for mmW & probing with active probes.
- Supports film-frame probing.
Ergonomic Design and Footprint
- Easy wafer or single DUT loading from the front.
- Integrated active vibration isolation.
- Completely integrated prober control for faster, safer and convenient system and test operation.
- The Safety Test Management (STM™) with automated dew point control.
- Reduced footprint due to smart chiller space arrangement.
- Instrument shelf option for shorter cables and higher measurement dynamic.
Specifications
| Chuck XY Stage (Programmable) | |
|---|---|
| Travel range | 220 x 490 mm (8.66 x 19.29 in) |
| Resolution | 0.2 µm |
| Accuracy | < 2.0 µm (0.08 mils) |
| Repeatability | < 1 µm |
| XY stage drive | Closed-loop high precision stepper motors |
| Speed | Slowest:10 µm/sec|Fastest:50 mm/sec |
| Chuck Z Stage (Programmable) | |
| Travel range | 30 mm (1.18 in) |
| Resolution | 0.2 µm |
| Accuracy | < 2.0 µm |
| Repeatability | < 1.0 µm |
| Z stage drive | Closed-loop high precision stepper motor |
| Speed | Slowest:10 µm/sec|Fastest:20 mm/sec |
| Guider | Precision ball bearings |
| Chuck Theta Stage (Programmable) | |
| Travel range | ±5.0° |
| Resolution | 0.0001° |
| Accuracy | <2.0 µm (measured at the edge of the 200 mm chuck) |
| Repeatability | <1.0 µm |
| Theta stage drive | High resolution stepper motor with linear encoder feedback system |
