MPI TS600-PCB is a 600 mm Manual PCB Probe System for accurate and reliable RF and mmW Measurements on PCB Boards.
Hover

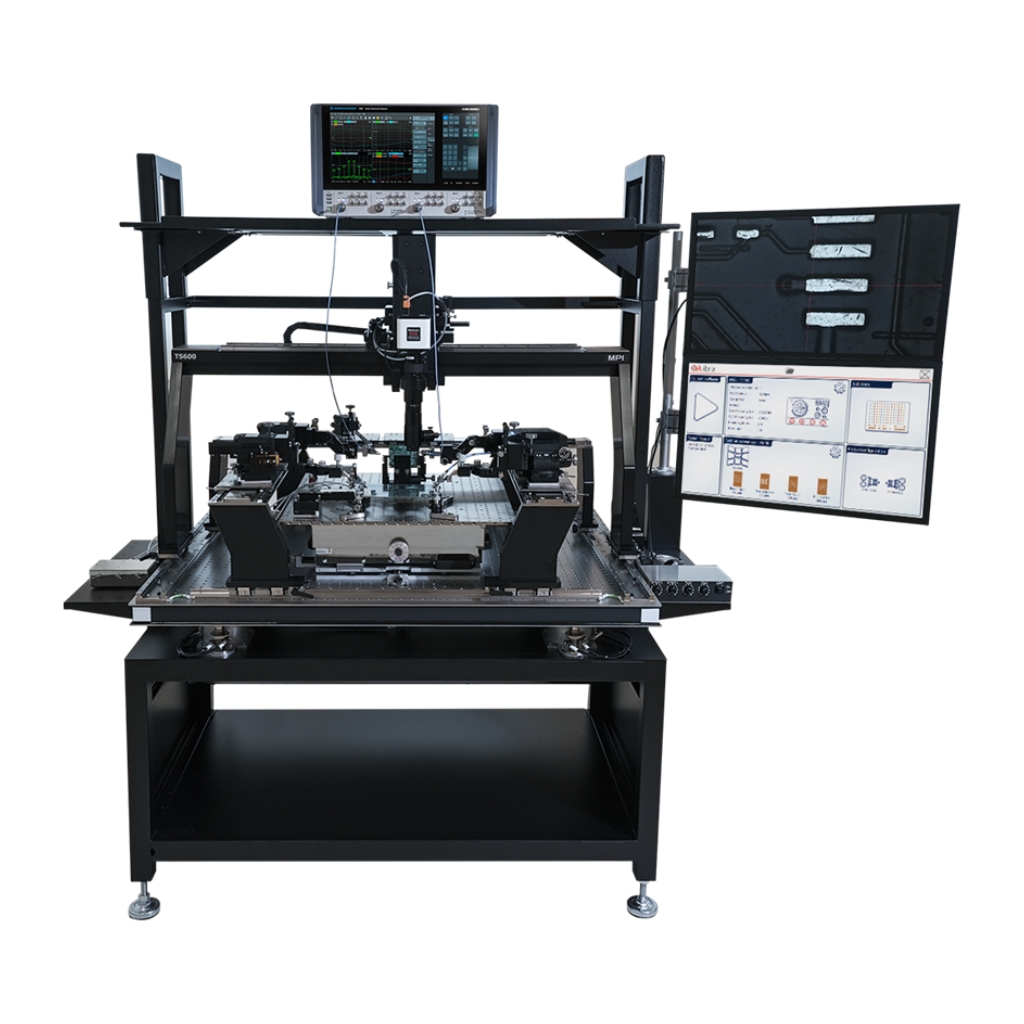

TS600-PCB:600 mm Manual PCB Probe System
MPI TS600-PCB is a 600 mm Manual PCB Probe System for accurate and reliable RF and mmW Measurements on PCB Boards.
Key Features
Dedicated Use
- Designed for PCB probing in various DC/CV and RF measurement configurations.
- Signal integrity.
- PCB holders from 2” x 2” up to 600 x 550 mm size.
- Enables double-sided RF test on vertically mounted PCB.
- Integrated AUX chucks for RF calibration.
Ergonomic Design
- Unique heavy-duty stage for PCB and accessory mounting.
- Three independent portals for up to 6 RF MicroPositioners or up to 12 DC positioners.
- Highly repeatable platen lift design with three discrete positions for contact, separation, and loading.
Upgradability
- Available with wide range of accessories such as DC/RF/mmW MicroPositioners, Optics to support various application requirements.
Specifications
| Chuck Stage Movement | |
|---|---|
| XY travel range | 100 x 100 mm (4.0 x 4.0 in) |
| Z travel range | 50 mm |
| Resolution | 1.0 mm/rev. |
| Chuck stage | Easy removable |
| Microscope Stage Movement | |
| Total XY travel range | 600 x 550 mm manual fast movement (gantry) |
| Fine Travel | XYZ manual |
| XY travel range | 50 x 50 mm |
| Resolution | < 5 µm (0.2 mils) |
| Z travel range | 25 mm |
| Coarse Z adjustment | 150 mm (7 steps at 25 mm distance) |
| Repeatability | < 2 µm (0.08 mils) |
