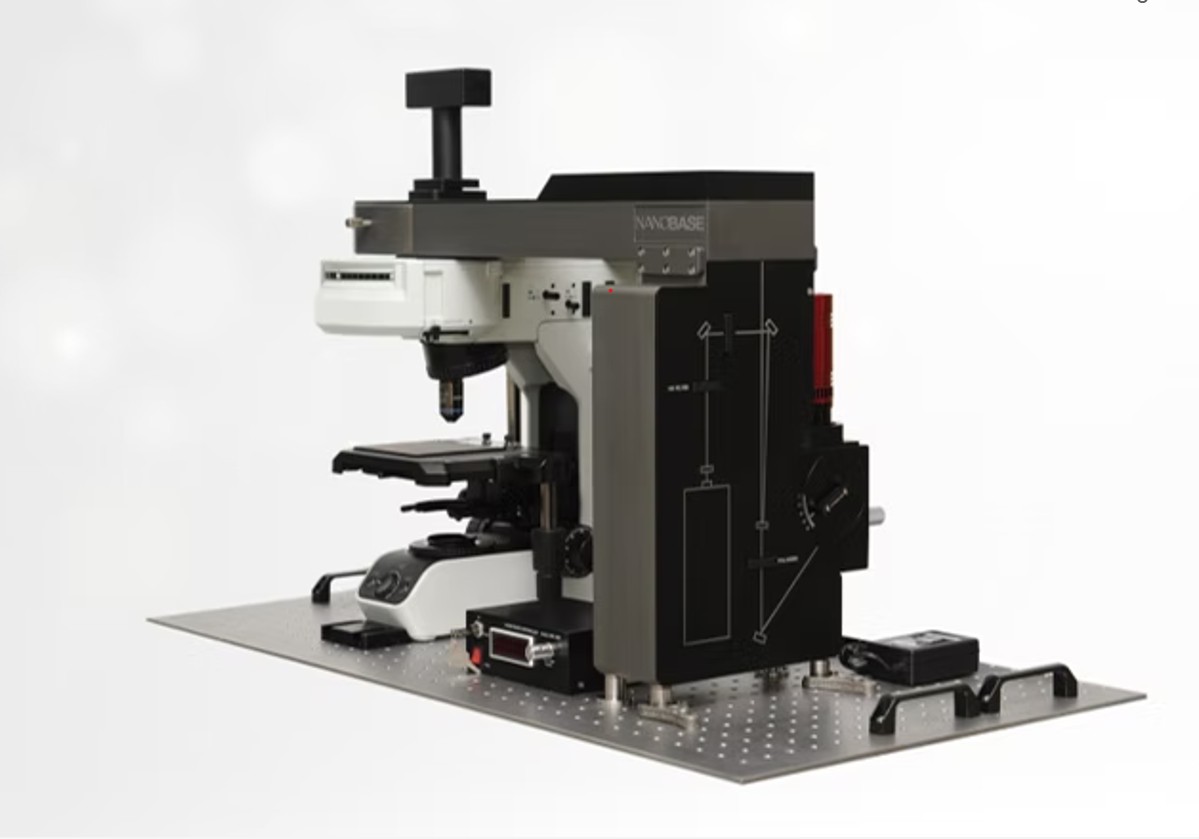

    XperRAM-C Series NANOBASE
    Full Screen

    XPER RAM C SERIES: Compact Confocal Raman System for High-Precision Applications

    The XperRAM-C Series is a versatile confocal Raman spectroscopy system that delivers high-resolution performance in a compact footprint. Designed for researchers who demand speed, precision, and flexibility, it supports wide-range (C-WR) and high-resolution (C-HR) measurements across selectable laser wavelengths (405, 457, 532, 633 nm). The system features Galvo mirror scanning for ultra-fast Raman imaging, slit-binned confocal optics for enhanced signal-to-noise ratio, and interchangeable VPH gratings to ensure optimal spectral control.

    Download Data SheetEnquiry Now

    Overview

    XperRAM C Series is by far one of the most compact, budget friendly micro Raman instrument products in the market. The laser scanning module in XperRAM C Series offers the widest scanning experience in the market with 200 µm x 200 µm scanning area on 40X objective.

    With XperRAM C Series, you can only have one laser equipped (usually 532 nm laser), but the quantum efficiency goes maximum (almost 80% at 532 nm wavelength) with the custom-made detector and spectrometer, so acquisition of precise Raman data is guaranteed with XperRAM C Series.

    Key Features

    • Confocal Raman spectrum and mapping
    • In-situ photocurrent measurement and mapping
    • Bright and dark field microscopic imaging
    • Selectable laser wavelengths (405, 457, 532, 633 nm)

    Specifications

    Products XperRAM-C Series C-WR (VIS, Wide Range) C-HR (VIS, High Resolution)
    Number of Lasers Single Single
    Laser Wavelength 405 nm ○ ○
    457 nm ○ ○
    532 nm ○ ○
    633 nm ○ ○
    Spectrometer XPE35 XPE50C
    Grating Options 600, 1200, 1800, 2400 600, 1200, 1800, 2400
    Microscope System Body BX43 (Upright) BX43 (Upright)
    Depth of Field < 1 µm < 1 µm
    Spatial Resolution < 1 µm < 1 µm
    Recommended Grating 1800 lpmm 2400 lpmm
    Spectrum Performance Spectral Range 50–3400 cm⁻¹ (532 nm) 50–1740 cm⁻¹ (532 nm)
    Spectral Resolution (FWHM @ center) 5.2 cm⁻¹ (532 nm) 2.7 cm⁻¹ (532 nm)
    Spectral Resolution (cm⁻¹/pixel) 1.7 cm⁻¹ (532 nm) 0.9 cm⁻¹ (532 nm)
    Mapping Performance (Galvo Scanner) Automatic Mapping based on SMART™ Mapping (requires motorized stage option)
    Automatic laser focus adjustment (532 nm, 633 nm)
    Max. Scan Range 200 µm (40X objective) 200 µm (40X objective)
    Step Resolution 100 nm 100 nm
    Repeatability < 1 µm < 1 µm
    Integration Options Motorized Stage ○ ○
    Cooling / Heating Stage ○ ○
    In-situ Photocurrent ○ ○
    In-situ Battery Cycle ○ ○

    Applications

    • Material Science: Thin films, nanomaterials, composites
    • Life Science: Cells, biomolecules, label-free detection
    • Pharmaceuticals: API analysis, impurities, polymorphs
    • Cosmetics: Ingredients, stability, skin penetration
    • Semiconductors: Contamination, stress, microstructures
