Overview
The 1-Micron ASE Source is a member of our
ASE product family that covers a variety of
wavelength ranges, spectral shapes, and
output powers. All are available in convenient
form factors including: OEM Module and
Benchtop unit.
Hover
Hover
Hover
1-MICRON ASE BENCH-TOP SOURCE: Compact ASE Benchtop Source
The 1-Micron ASE Source is a member of NP Photonics ASE product family that covers a variety of wavelength ranges, spectral shapes, and output powers. The 1-Micron ASE Bench-top Source is a turn-key instrument that uses Amplified Spontaneous Emission (ASE) technology to deliver a stable, high-power, broadband light source in the 1-micron wavelength range.
Key Features
- >13 dBm (>20 mW).
- Wide Bandwidth (>65nm).
- Integrated Pump Laser.
- Customizable Spectra.
- Monitoring Electronics.
Specifications
| Parameter | Low Power | High Power | Extended Bandwidth |
|---|---|---|---|

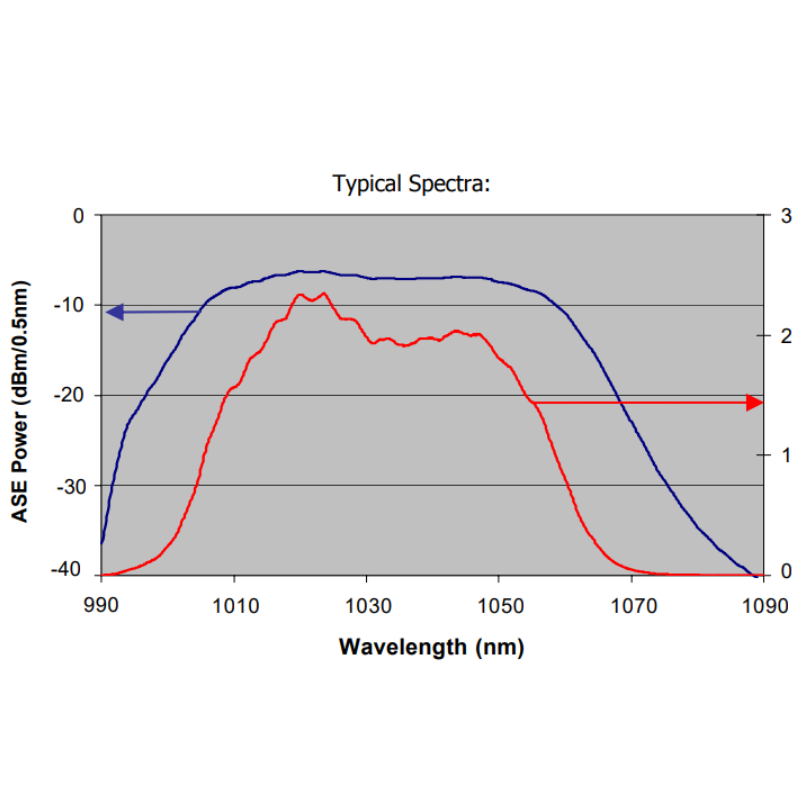

| Wavelength range @ 3 dB | 1000 – 1050 nm | 1005 – 1055 nm | 1005 – 1075 nm |
| Wavelength range @ 10 dB | 995 – 1060 nm | 1000 – 1065 nm | 1000 – 1090 nm |
| Output Power (dBm) | > 7 dBm | > 13 dBm | > 13 dBm |
| Degree of Polarization | < 5% | < 5% | < 5% |
| Package Dimensions | 200 x 72 x 16 mm | 200 x 120 x 26.35 mm | 200 x 120 x 26.35 mm |
Applications
• Bio-medical imaging (OCT).
• Sensing.
• Passive components testing.
• Spectroscopy.
