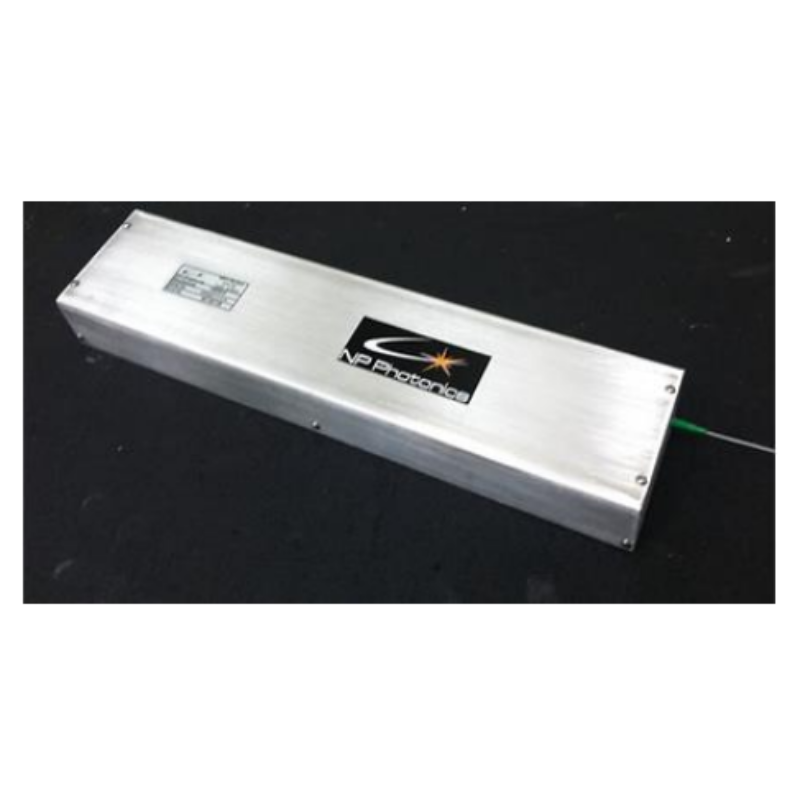

The Amplifier Gain Block is a high-power short fiber amplifier OEM module. This compact, high-performance unit is specifically engineered for system integrators, achieving high optical gain in a very short fiber length.
• High Gain in Short Length (cm)
• Compact OEM module package for system integrators
• Input spliced to commercial PM (LMA) Double-cladding fiber
• Very large MFA available
• Supports up to 100 W output power
• Supports greater than 500 kW peak power
• Center wavelength over 1018−1080 nm
• Near-single mode (M2<1.3)
• Polarization Maintaining (PER>15 dB)
• Hermetic sealing available
• Collimated output available
• Fully customizable
| Parameter | Value |
|---|---|
| Wavelength | 1018nm-1080nm; 1528nm-1575nm |
| Output Average Power | Up to 100 W |
| Output Peak Power | ≥ 500 kW |
| Gain (nominal) | ≥ 16 dB |
| Optical to Optical Efficiency | ≥ 45 % (absolute), ≥ 55 % (slope) |
| Polarization Extinction Ratio (PER) | ≥ 15 dB |
| Beam Quality | M2 ≤ 1.5 (typically ≤ 1.3 depending on wavelength) |
| Gain Fiber Length | ≥ 8 cm (nominally 20 cm) |
| Gain Fiber Mode Field Area (MFA) | ≥ 500 μm² (other MFA available upon request) |
| Input Double-Cladding Silica Fiber (internally spliced) | Nufern PM-GDF-1550, PM-GDF-5/130, PLMA-GDF-10/125-M, PLMA-GDF-20/130, PLMA-GDF-25/250-M (other fibers available upon request) |
| Package Dimension (nominal) | 3” (W) x 1” (H) x 14”(L) |
| Cooling | Water, Air |
• Optical signal processing.
• Interferometric sensing.
• Distortion-free short optical pulse amplification.
• Long haul networks.
• Free-space Communication.
• Band amplifier.
• Single channel amplifier.
• Loss compensation for optical components.
