C-BAND ASE OEM MODULE: Compact ASE OEM Module

The C-Band ASE Module is a member of the NP Photonics Amplified Spontaneous Emission ( $ASE$ ) product family, which offers various wavelength ranges, spectral shapes, and output powers in convenient form factors. It is a compact OEM module that utilizes $ASE$ technology to generate a stable, broadband light source, operating in the C-band.

Download Data Sheet Enquiry Now

Overview

The C-Band ASE Module is a member of the NP Photonics Amplified Spontaneous Emission (ASE) product family, which offers various wavelength ranges, spectral shapes, and output powers in convenient form factors. This module utilizes ASE technology to generate a stable, broadband light source, operating in the C-band.

Key Features

• Full C-Band operation.
• 7, 10, 13, 17 or 19 dBm.
• Wide bandwidth.
• Integrated pump laser.
• Microprocessor control.
• Customizable.

Specifications

Parameter	Value

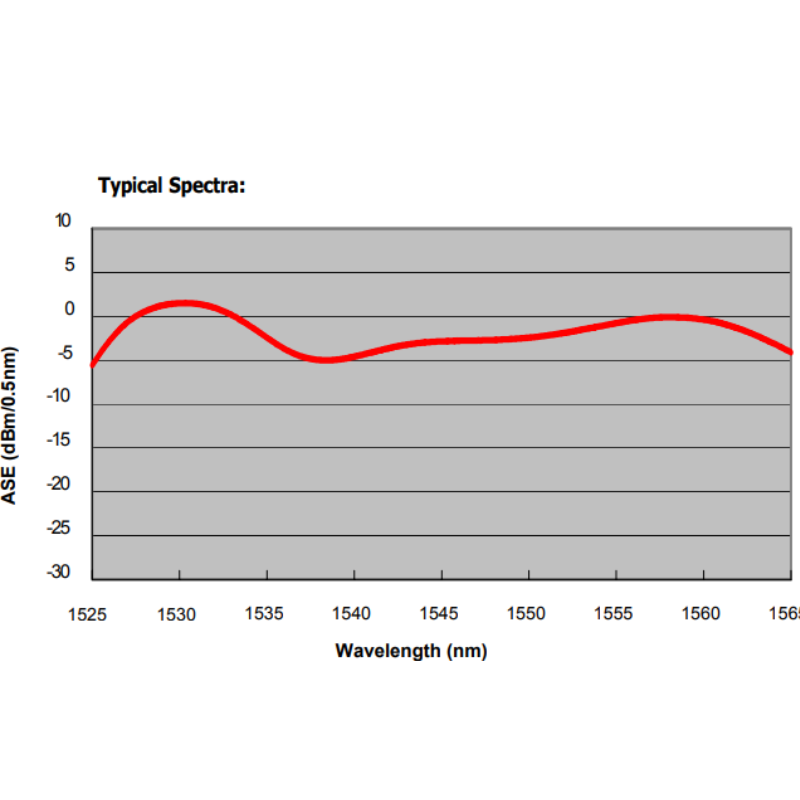

Wavelength Range	1525-1565 nm
Output Power	7, 10, 13, 17 or 19 dBm
Spectral Power Variation (dB)	<± 5
Output Power Stability (dB) (1hr) at fixed ºC	< 0.04 dB
Output Power Stability (dB) over 0-50 ºC	± 0.2
Output Polarization (Degree of Polarization)	< 5%
Power Consumption	<8.25 W, < 3W Typical
Supply Voltage	+3.3V ±5
Supply Voltage Noise Level	<50mW pk-pk
Supply Current	2.5A Max; 1A Typical (1)
Power Supply Capacitive Load	250uF Decoupling Inside Unit
Optical Bandwidth @ 10 dB point	> 40 n

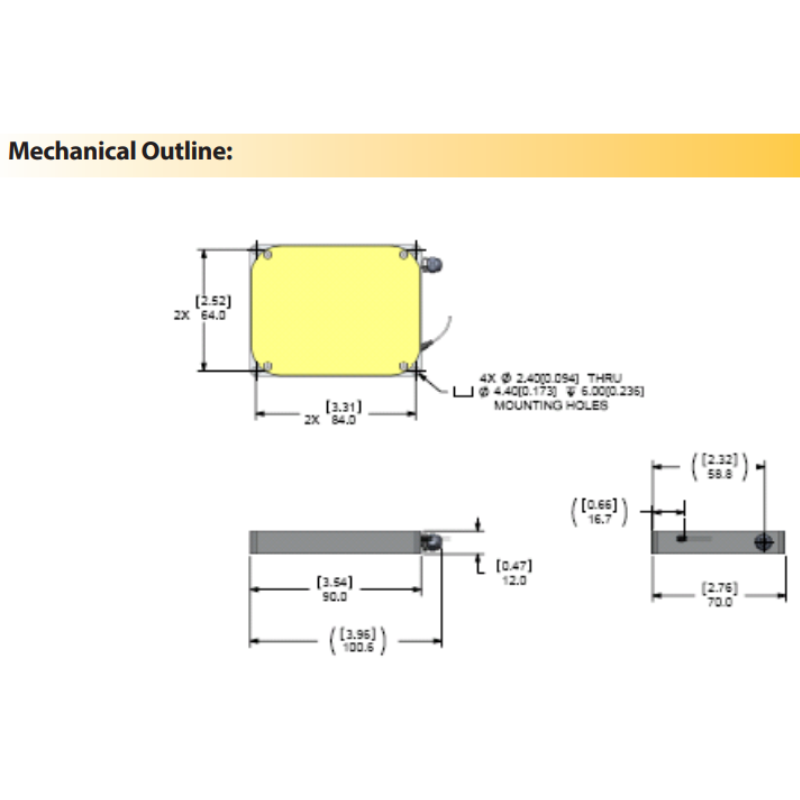

Package Dimension	90 x 70 x 12 mm

Applications

• Sensing.
• Passive components testing.
• Bio-medical imaging source.
• Fiber Optic Gyroscope.
• Spectroscopy.
