Key Features
- Full C&L Band operation
- 7, 10, 13, 17 & 19 dBm
- Integrated pump laser
- Microprocessor control
- Monitoring electronics
- Customizable
Hover
Hover
Hover

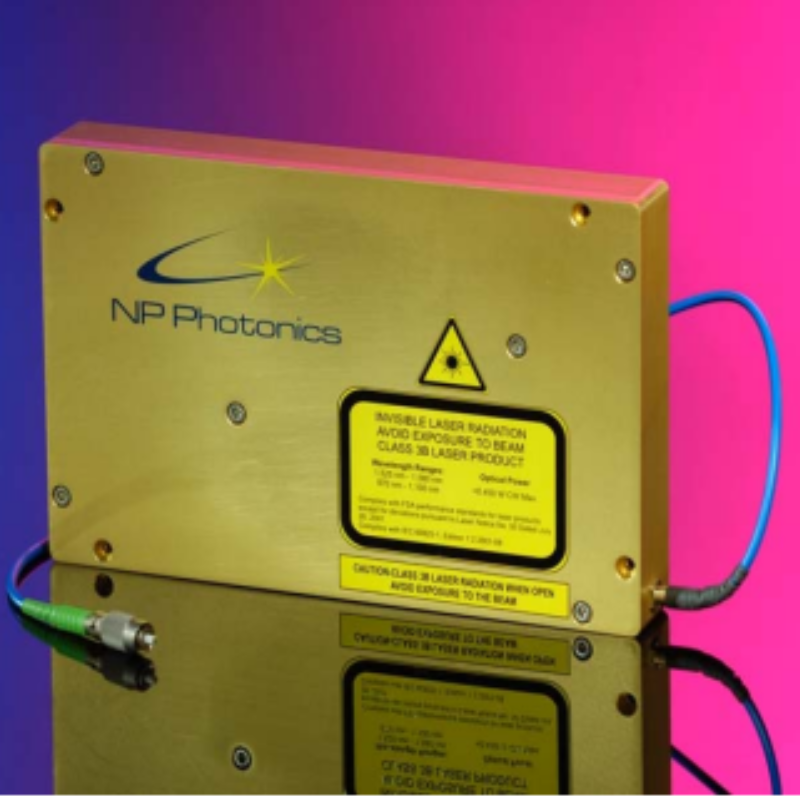

C&L BAND ASE OEM MODULE: Compact ASE OEM Module
The C&L Band ASE Module is a member of NP Photonics’ ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. This Compact ASE OEM Module delivers a stable, high-power, broadband light source covering both the C and L bands, and is available in convenient form factors.
Specifications
| Wavelength Range | 1525 to 1610 nm |
| Output Power | 7, 10, 13, 17 & 19 dBm |
| Minimum power stability (dB) (1 hr) at fixed °C | ± 0.02 dB |
| Minimum spectral power density (dBm/nm) | -1 |
| Optical Bandwidth @ 10 dB point | > 85 nm |
| Output Polarization (Degree of Polarization) | < 5% |
| Power Consumption | < 6 W |

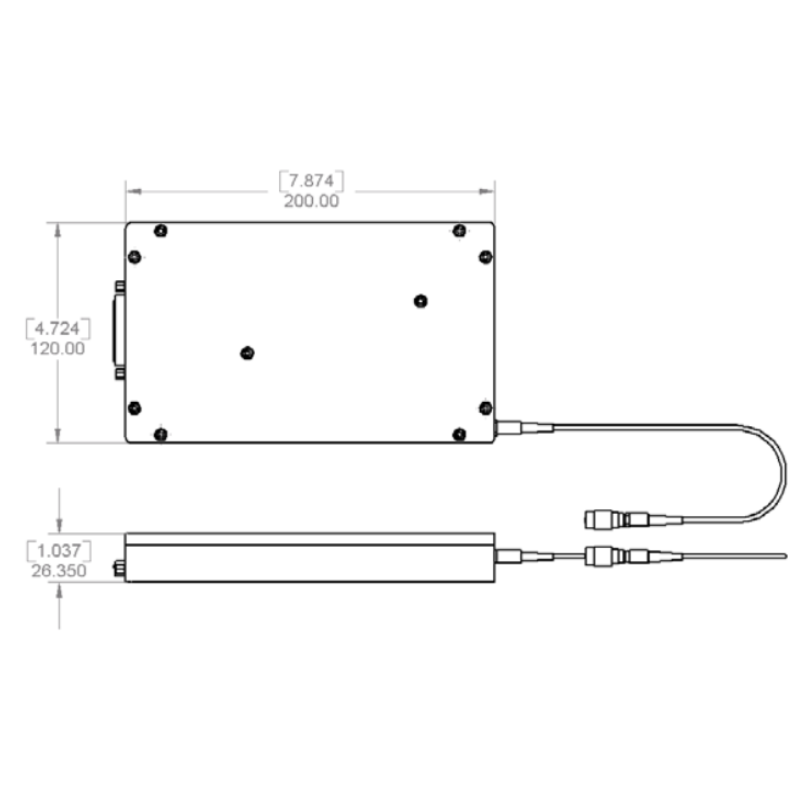

| Package Dimension | 200 x 120 x 26.35 mm |
Applications
• Sensing.
• Passive components testing.
• Bio-medical imaging source.
