Key Features
• Full C&L Band operation.
• 13, 17, & 19 dBm.
• Wide bandwidth.
• Turn-key system.
• RS232 interface.
• CDRH compliant.
• Integrated pump laser.
• Microprocessor control.
• Monitoring electronics.
• Customizable.
Hover
Hover
Hover
C&L BAND ASE BENCH-TOP SOURCE: Compact ASE Benchtop Source
The C&L Band ASE Source is a member of NP Photonics ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers in convenient form factors. The C&L Band ASE Bench-top Source is a turn-key instrument that utilizes Amplified Spontaneous Emission (ASE) technology to generate a stable, broadband light source covering the C and L bands.
Specifications
| Parameter | Value |
|---|---|

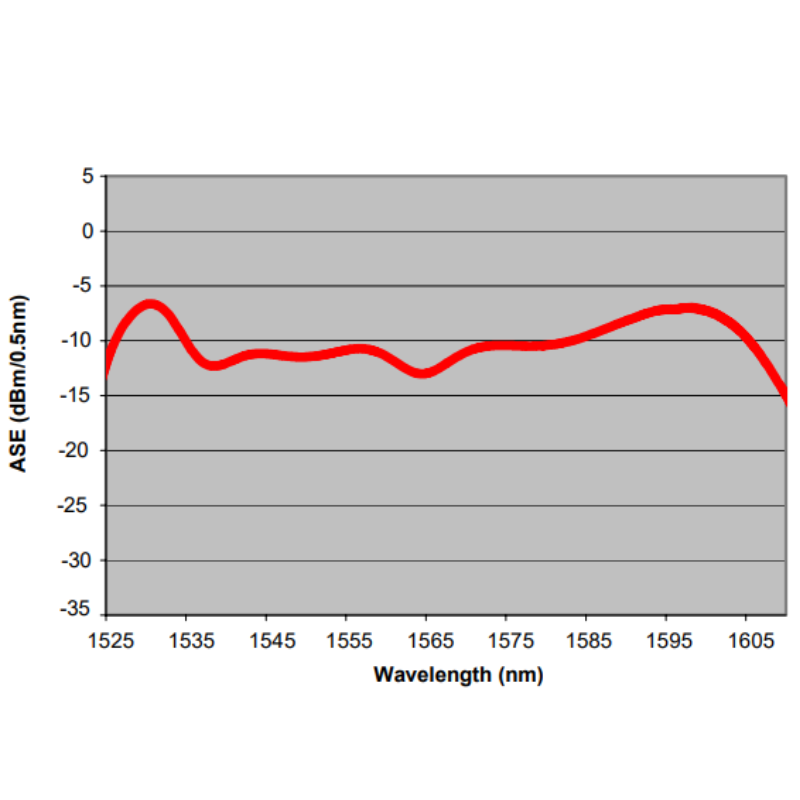

| Wavelength Range | 1525 to 1610 nm |
| Output Power | 7, 10, 13, 17 & 19 dBm |
| Minimum Power Stability (dB) (1 hr) at fixed °C | ± 0.02 dB |
| Minimum Spectral Power Density (dBm/nm) | -1 |
| Optical Bandwidth @ 10 dB point | > 85 n |
| Output Polarization (Degree of Polarization) | < 5% |
| Power Consumption | < 6 W |
| Package Dimension | 200 x 120 x 26.35 mm |
Applications
• Sensing.
• Passive components testing.
• Bio-medical imaging source.
• Spectroscopy.
