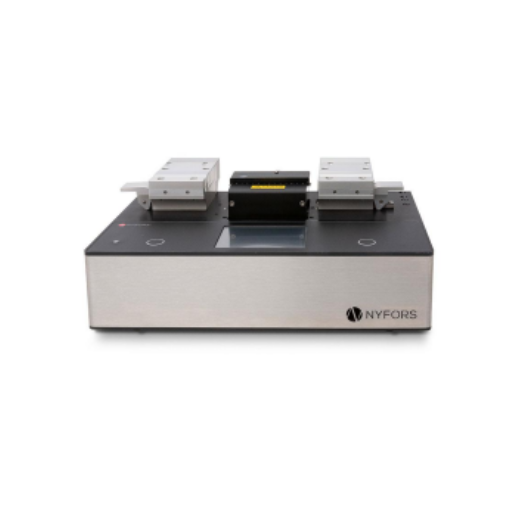

The RECOATER 2™ is a versatile tool designed to restore the protective coating on acrylate-coated optical fibers for high-strength applications. It offers high-quality recoating and proof testing capabilities, making it ideal for both production and laboratory environments. The RECOATER 2™ is engineered for easy setup and optimization, ensuring suitability for a wide range of applications, including undersea optical fiber cable manufacturing and high-power fiber laser production.
The RECOATER 2™ is used to restore the protective coating on acrylate coated optical fibers in high strength applications. It provides versatile high quality recoating and proof testing capability and is well suited for use in a production or laboratory environment. The RECOATER 2™ is designed for easy setup and optimization, making it suitable for various applications, including undersea optical fiber cable manufacturing and high power fiber laser production.
• Consistent, high quality results.
• Short cycle time.
• Easy to set up for different optical fiber dimensions and recoating materials.
• High and low index recoating.
• Linear and mandrel proof testing.
• No need for compressed air or vacuum.
| Specifications | Details |
|---|---|
| Curing Time | Programmable, 3 s typical |
| Light Source | UV LED |
| Wavelength | 380-385 nm |
| Mould Material | Silicone |
| Mould Mounting | Exchangeable |
| Mould Length | 34 mm, 55 mm |
| Recoating Diameter | 165, 250, 300, 400, 550, 730 & 900 μm* |
| Tensile Testing | 0-20 N (linear) / 0-100 N (mandrels) |
| PC Connection | Ethernet and USB flash drive connection |
| Power Supply | External 12 V DC, 60 W |
| Compressed Air | Not needed |
| Dimension | 270 mm (W) x 170 mm (D) x 98 mm (H) |
| Weight | 3.9 kg |
